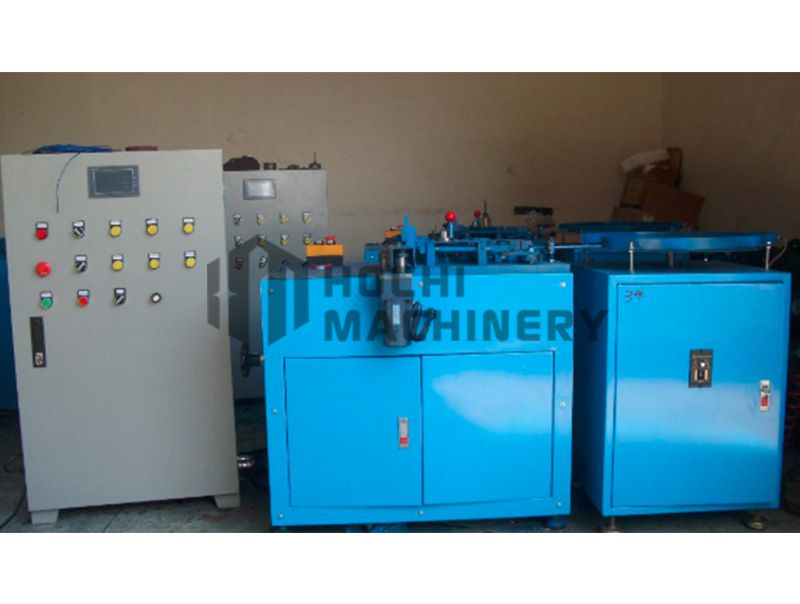

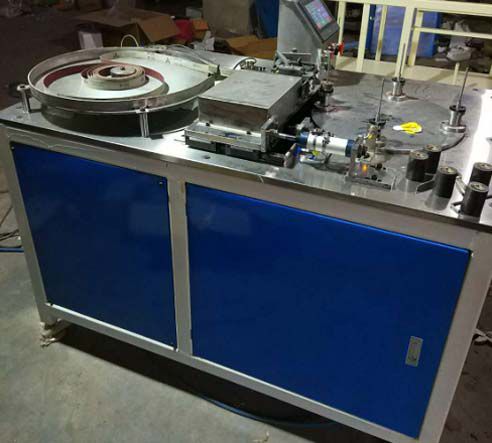

HC-MF Mounted Flap Wheel Making Machine

Main Technical Parameters:

1. Flap wheel specifications: Diameter(20～80)*Thickness(15-50)mm;
2. Feeding Flap Length for Abrasive Clothes in Pieces :(5-30)mm(adjustable);
3. Feeding Flap Width:(15-50)mm;
4. Abrasive Clothes No.: 30-100 pieces (adjustable);

5. Controlling: Touch panel;

6. Output Speed: 300-500 pieces/hour (depended on wheel diameter);
7. Operator No.:1 person;
8. Power: 2KW;

9. Main Machine (L*W*H):800*560*820mm
    Electric Cabinet :(L*W*H)600*305*1050mm
