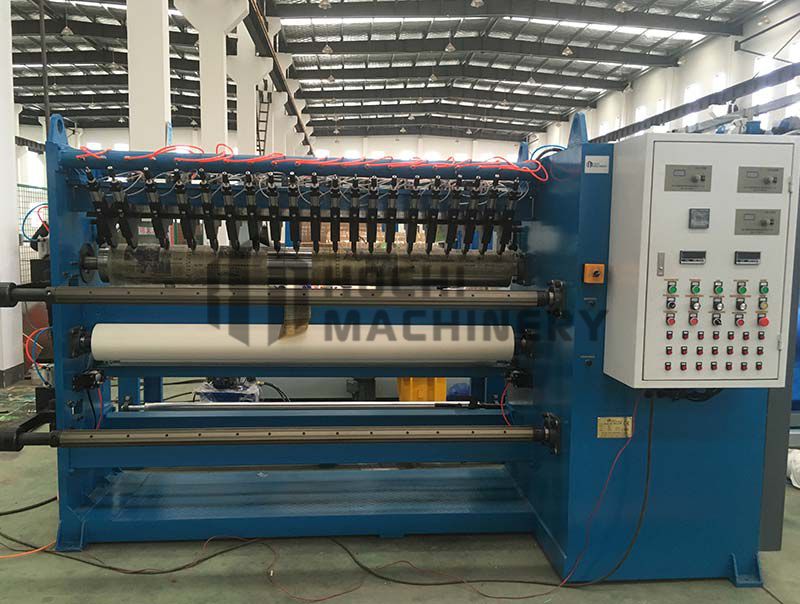

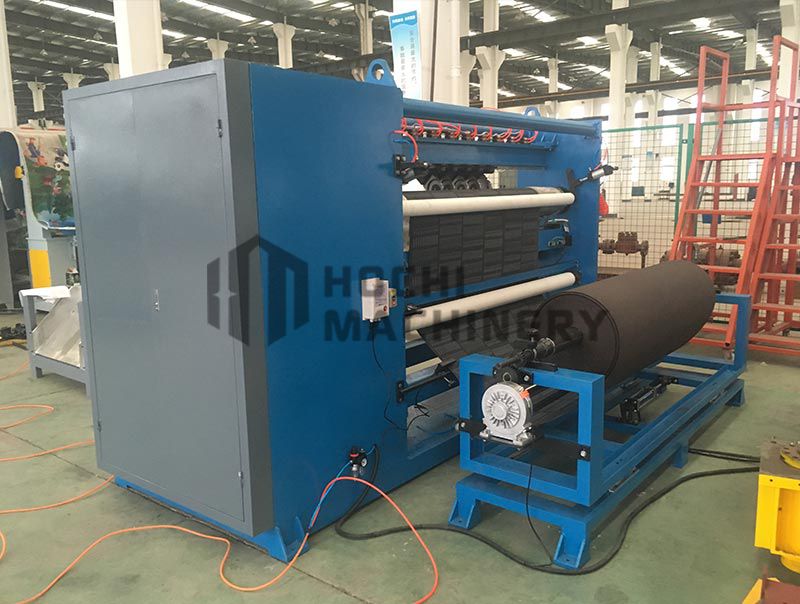

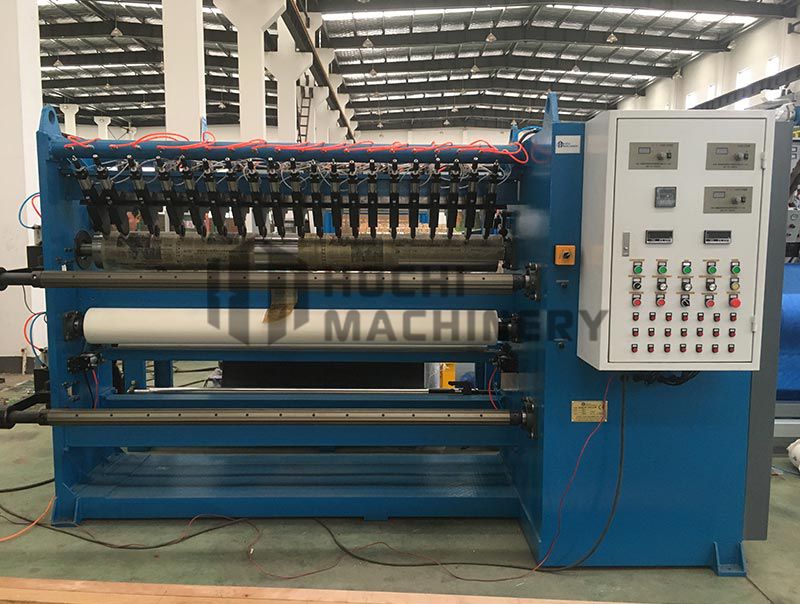

HC-A02 Abrasive Paper Slitting Machine

I.APPLICATIONS AND FEATURES

This machine is made as client’s request,mainly used for slitting all kinds of abrasive paper,abrasive cloth.can slit different width and length material.

II.PARAMETERS

1.Effective width:1650mm/2050mm

2.Max. Diameter of the material roll:¢600mm

3.Inner Diameter of the cardboard pipe:3〞

4.Min. Slitting width:80mm

5.Max. Diameter of rewinding roll:600mm

6.Designed speed:2-35m/min

7.Power supply:Four wire three phase 380V 50HZ/Customized

8.Total power:5.5KW
